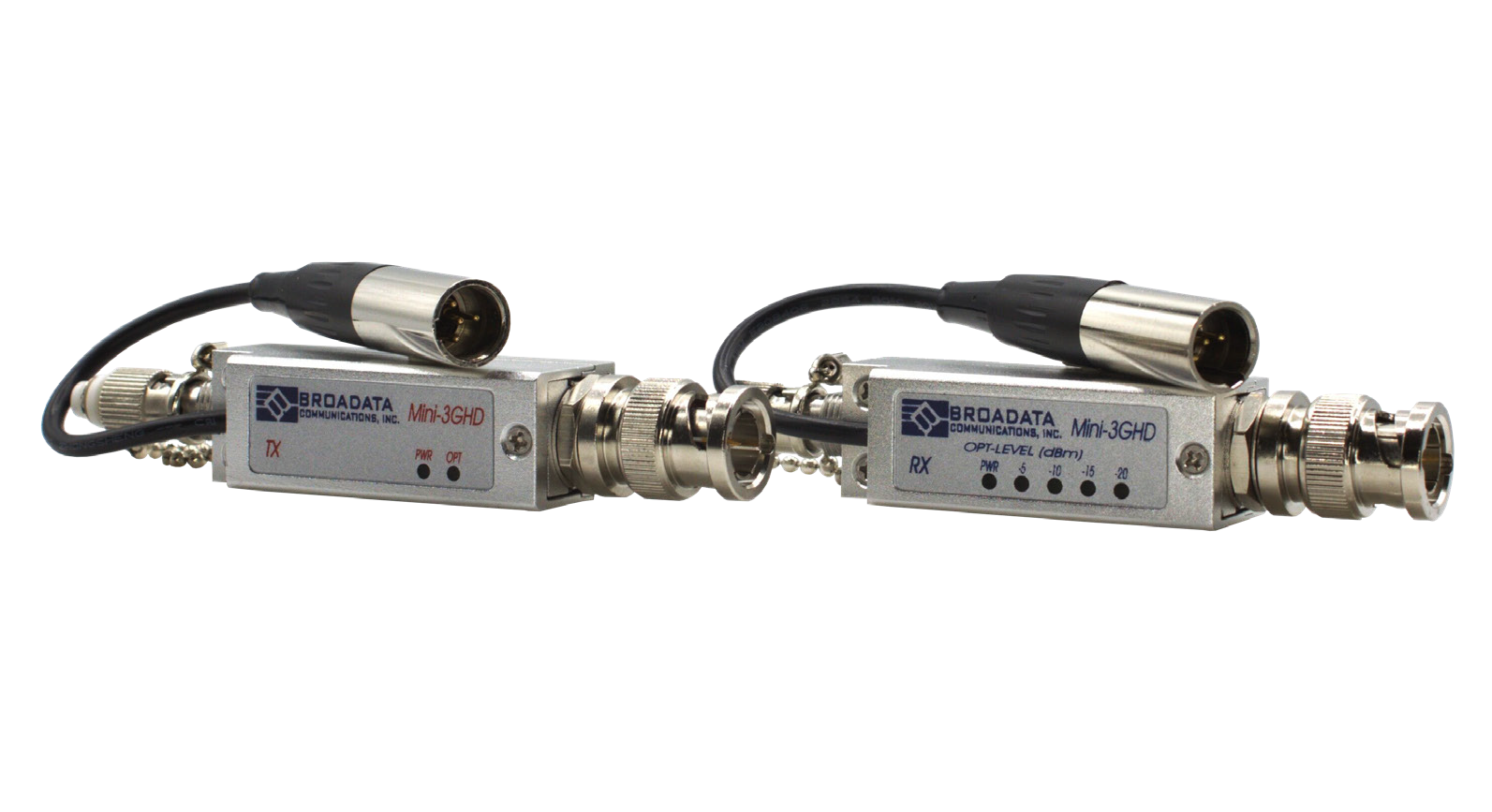

3G-SDI Module Transmitter & Receiver

The Mini-3GHD is a miniature, Fiber Optic 3Gb/s SDI Digital Video Transport System, supports 1080p 3Gbps SDI video formats. The standard Mini-3GHD system is designed to transport one (1) channel SMPTE-424M 3Gb/s SDI, SMPTE-292M HD-SDI or SMPTE-259M SDI serial digital video signal over long distance through either singlemode or multimode fiber. No user adjustments are required in the Mini-3GHD system to enable quick deployment and trouble-free operations The Mini 3GHD supports SDI, DVB-ASI, HD-SDI, 3G-SDI, and many other video formats. The power connector has a latch-locking mechanism, to ensure you will experience no power disruptions. Panel connectors are provided for digital video (BNC connector) and fiber connection (ST-type for the singlemode and multimode version. Rackmount card chassis option is also available.
